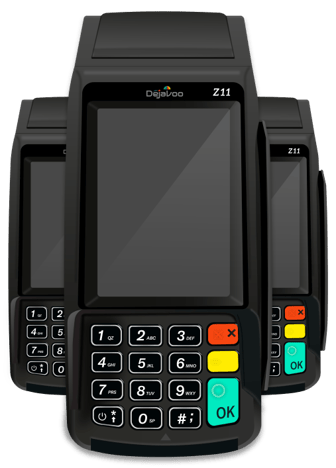

Dejavoo Z11 Countertop Technical Characteristics

Please refer to the Hardware Matrix for the Dejavoo Z11 Countertop Series to verify additional compatibility by partner.

Features that Keep Your Business Moving Forward

3.5" color LCD touchscreen
32-bit 400MHz secure microprocessor
192MB of memory
Ethernet, 2.4GHz Wi-Fi
Compatible with Apple Pay, Google Wallet, and Samsung Pay

Specifications

Category	Details
Software	SDK, KMS, TMS, Simulator, CTOS Library, ISO 8583 Library, Crypto Library
Processor	32-bit 400MHz Secure Microprocessor
Display	3.5" Color LCD Touchscreen
Memory	Flash/DDR RAM: 128MB / 64MB
Card Readers	Magnetic Stripe: ISO 7810, 7811 & 7813 Triple Track, Bi-Directional Contact Card: ISO 7816 ID-1, 1.8V/3V/5V, T=0/T=1 (up to 4 SAM cards) Contactless (Standard): ISO 14443 Type A/B, ISO 18092 NFC, Mifare®, Sony® Felica (13.56MHz)
Certifications	PCI PTS v4 \| EMV L1/L2 \| TQM \| PBOC L1/L2 \| American Express \| JCB J/Speedy \| Apple Pay \| Google Wallet \| Samsung Pay Safety & EMC: CE, FCC, BSMI, RoHS
Communication	Ethernet, 2.4GHz Wi-Fi
Keypad	15 Standard Keys
Printer	2.25" × 80' thermal printer, 4" per second print speed
Environment	Operating Temperature: 32°F to 150°F (0°C to 65°C) Storage Temperature: -4°F to 158°F (-20°C to 70°C)
Dimensions (L×W×H)	7.5" × 3" × 3"
Weight	0.77 lbs

Note: This device has reached end-of-life status and is available for boarding exclusively as customer-owned equipment.

Note: Looking to better understand the Dejavoo Z11 Countertop and its capabilities? All Quick Reference Guide resources mentioned here are available for download, perfect for sharing with your team or reviewing offline to see how the Dejavoo Z11 Countertop can streamline your payment processing experience.

Additional Resources

Dejavoo Z11 Countertop Partner brochure
