Dentrix POS Integration

About

Dentrix is a dental practice management and clinical software system from Henry Schein One, helping dental practices manage patient information, appointments, billing, and clinical data to improve efficiency and patient care.

Website: https://www.dentrix.com/

Category Details
Integration Type On-prem

Installation Guide:
Installing POS+ On-Prem
Features Card on File
Stored card to quickly recharge a known customer.

Deposit Payments
Take a down payment against an invoice.

Refund
Process refunds directly through the platform.

Split Refund
Refund a partial amount of a purchase.

Void
Void transactions before settlement.
Payment Flows Push to Terminal
Payment Links
Keyed Transactions
Keyed ACH
Additional Payment Flows Payment links reconcile in the Dentrix versions above.

Recurring payments are active in Dentrix versions above.
Requirements Dentrix v 25.16x
Dentrix v 25.21.2
Dentrix v 26.1.2
Dentrix v 26.2

Important Notes

Once a payment flow has been built for a software, it becomes available to all users.

Critical Notes:
  • There are multiple versions of on-prem Dentrix. POS+ supports v25.16.x, v25.21, and v26.x. Additional versions may require development. Partners are responsible for the development costs needed to support any additional version.
  • POS+ currently reconciles as payment type "Online Payment- Thank You". This type must be created in Dentrix.
  • For reconciliation, other Dentrix applications should be closed. For payment link creation, other applications can remain open.

Marketing Demo Video

Browser Extension



POS+ Extension Dentrix Demo Video

Integration Type

This integration requires the On-Prem to be installed and active within your supported browser.

Add Payment Type

Important:

To complete the reconciliation in Dentrix, add a new payment type. You can use either "POS+" or "Online Payment- Thank You", or check if one of them already exists in the list. If both are available, "POS+" is preferred.

Please note:

  • There is a space at the beginning of the name.
  • There is no space after the word Payment (it is written as Payment-, not Payment -).

To add this payment type, please use Office Manager:

  1. Launch Dentrix Office Manager

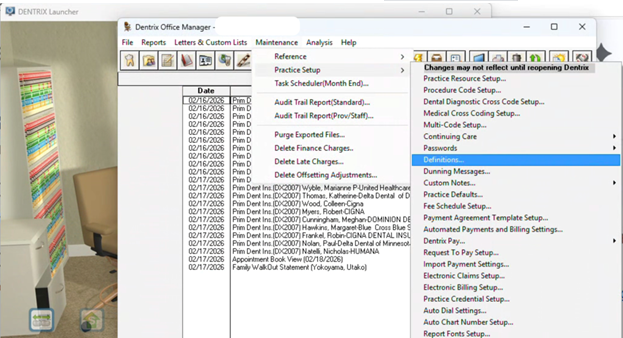

  2. In the Office Manager, click Maintenance, point to Practice Setup, and then click Definitions.
    1. The Practice Definitions dialog box appears.

      Dentrix- Add Payment 1_Kb Media

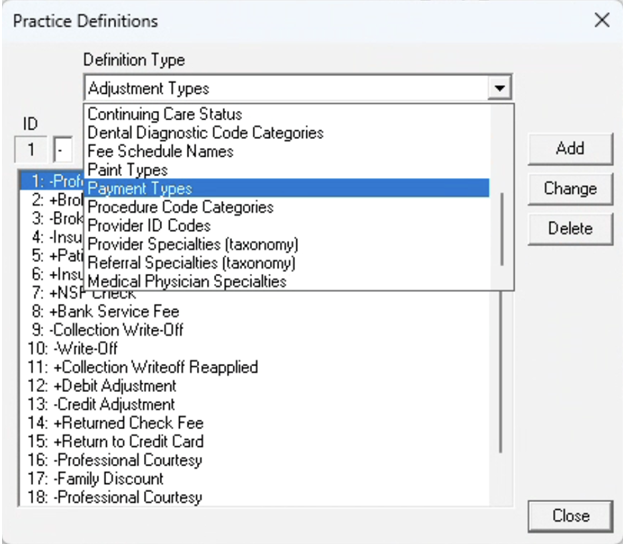

  3. From the Definition Type list, select Payment Types.
    1. The current list of payment types appears

      Dentrix- Add Payment 2_Kb Media
  4. Add payment type “POS+”.
Requirements
Dentrix v 25.16x
Dentrix v 25.21.2
Dentrix v 26.1.2
Dentrix v 26.2

Support

    1. Moving the mouse or typing on the keybound while POS+ is running a payment activity might cause POS+ to fail. Therefore, inform the merchant not to engage in these activities while running a transaction through POS+. If the transaction fails, simply retry the operation and remove hands from the mouse and keyboard for a few seconds.
    2. If the user’s machine is too slow, POS+ might timeout waiting for a user’s activity. While we have never seen this in practice, it is possible that people are running 20+ year old machines and the machine is simply incapable of running a POS+ integration.
    3. Ensure the user’s Dentrix version is supported by POS+.
    4. Firewalls can prevent the POS+ executable from installing. Please consult with the customer’s network personnel to overcome any obstacles.
