PAX SP30 Integrated PIN pad Technical Characteristics

SP30 Terminal Image

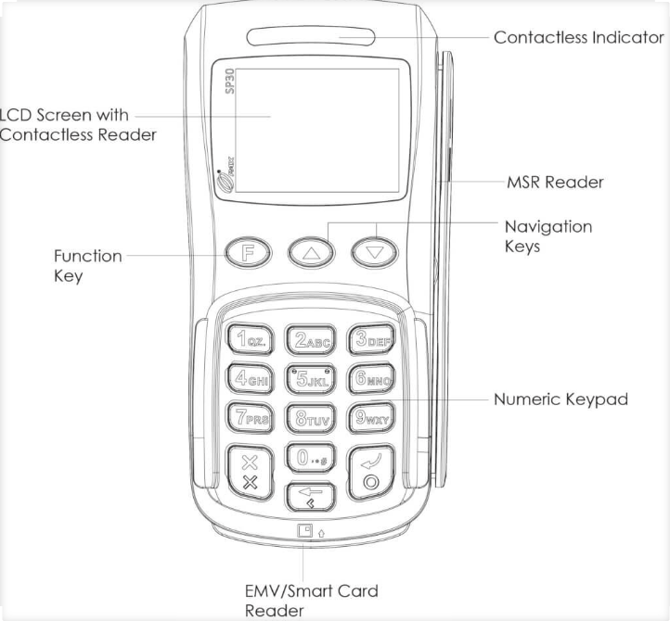

 SP30 Quick Set up Guide

Please refer to the Hardware Matrix for the PAX SP30 Integrated PIN Pad Series to verify additional compatibility by partner.

This device has reached end-of-life status and is available for boarding exclusively as customer-owned equipment.

PAX SP30 Verticals

SP30 — Main Features

  • Programmable
  • 2.4" TFT QVGA backlit display
  • 10 numeric & 6 function keys
  • Optional external power supply (5VDC, 1A)

Use Cases

  • Standalone countertop terminal
  • PIN pad configuration for integrated setups
  • Optional contactless acceptance
Category Terminal PIN Pad
Application / Integration Fully integrated or semi-integrated; accessory options Optional (host-controlled)
Processor32-bit ARM11Same
Memory 192MB (128MB Flash, 64MB RAM) Optional
Display 2.4" (320 × 240) TFT QVGA; backlit; capacitive touch 2.4" (320 × 240) QVGA; backlit
Keypad 10 numeric/alphabet keys, 6 function keys 10 numeric + 6 function keys
Card Reader Types Magnetic Stripe, Smart Card, Contactless Card Smart Card (PIN entry); contactless optional
SAM Slots3 × SAMsOptional
Communication USB/OTG, Mini-USB; terminal interface; Ethernet; RS232 via USB-to-serial or RS232 only USB
Peripheral Ports Multi-functional port; PIN pad/RS232; RJ45 Ethernet N/A
Power Supply Input 100–240VAC 50/60Hz; Output 5VDC, 1A N/A
Physical Approx. 137.7 × 67.3 × 21.8 mm Compact handheld form factor
Certifications PCI PTS 4.x SRED | EMV L1 & L2 | EMV Contactless L1 | Visa payWave | Mastercard PayPass | American ExpressPay | Discover D-PAS | Interac Flash | JCB J/Speedy | UnionPay QuickPass
